104 Kb
My 2 calculators:
HP41C on the left, HP41CX on the right |

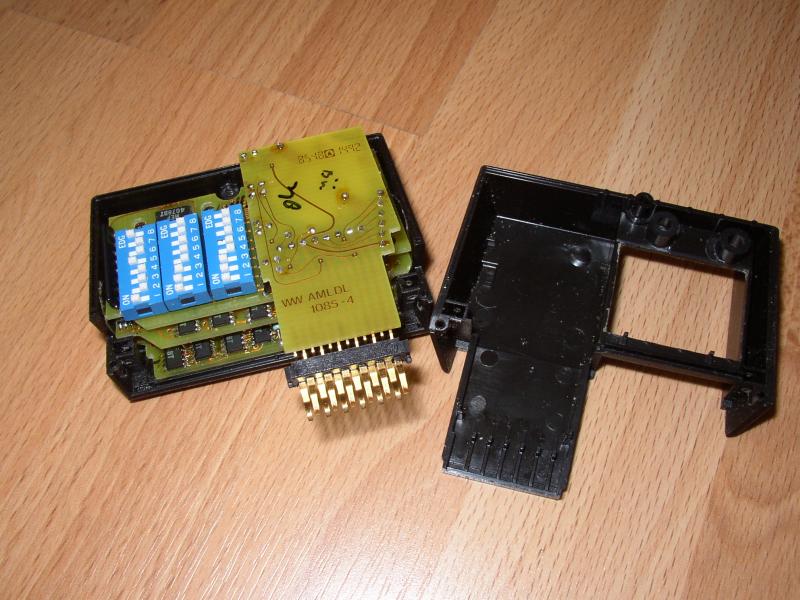

86 Kb

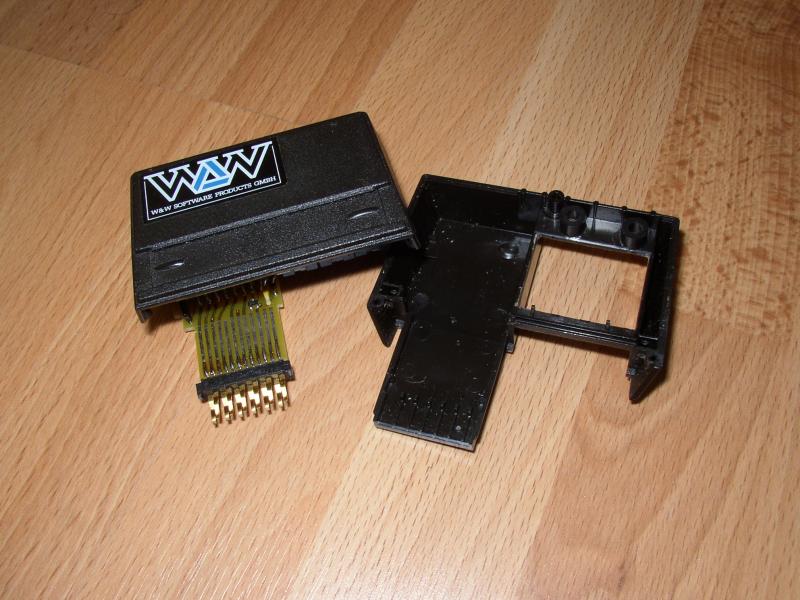

W&W Rambox
inside a cardreader housing |
92 Kb
W&W Rambox,
bottom side |
102 Kb
ERAMCO RAMBox |
|
105 Kb

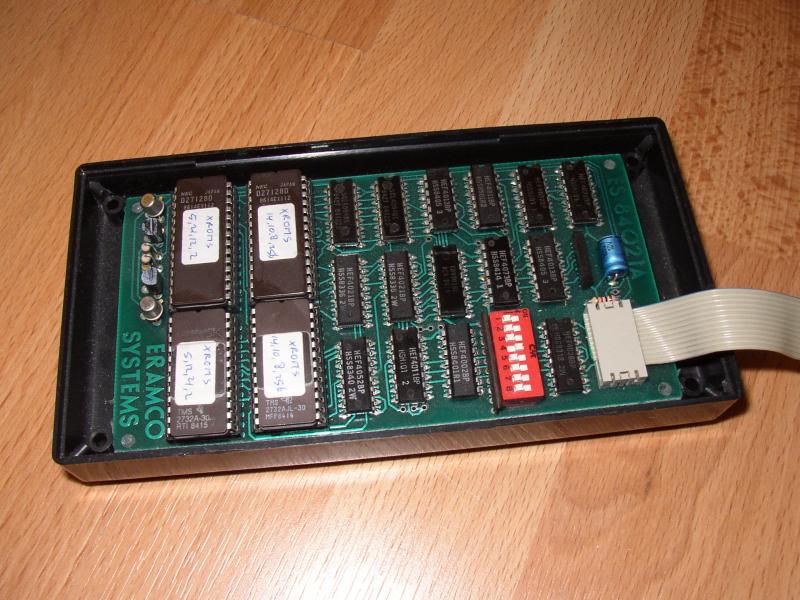

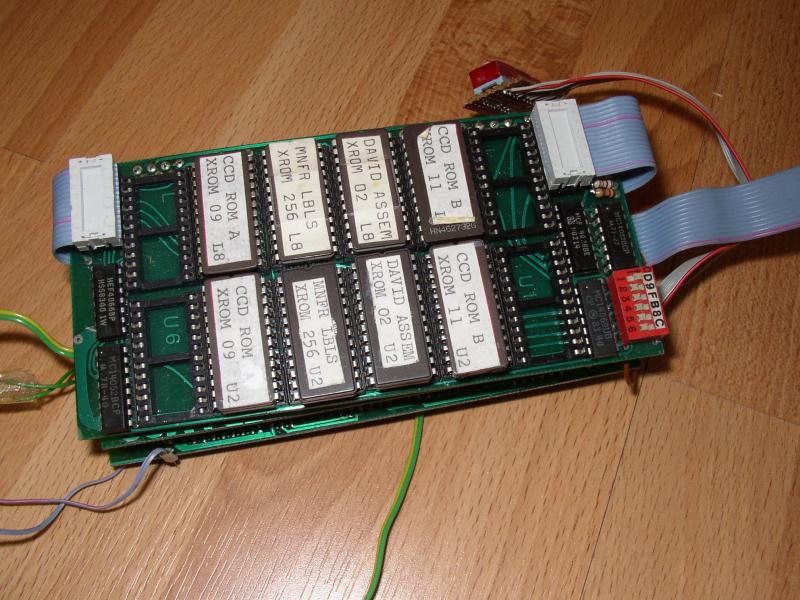

ERAMCO MLDL, side
with 6 EPROM positions |
110 Kb
ERAMCO MLDL, side
with SRAM. Note that one SRAM IC is missing, I have used this for
interfacing with a PC. |

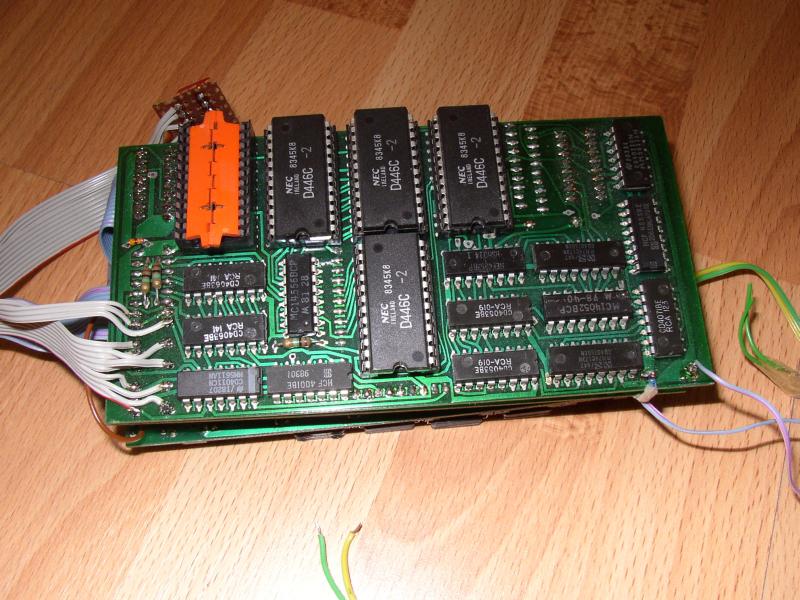

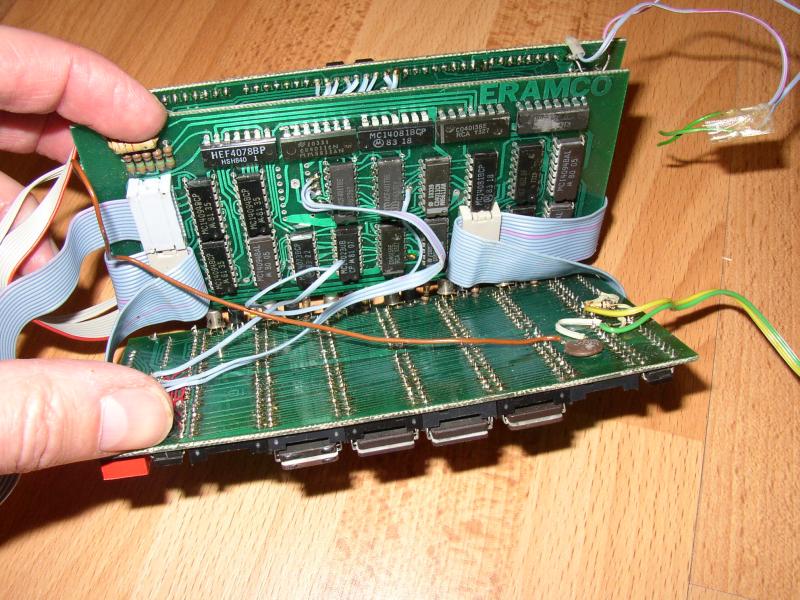

119 Kb
View of center PCB
of ERAMCO MLDL |

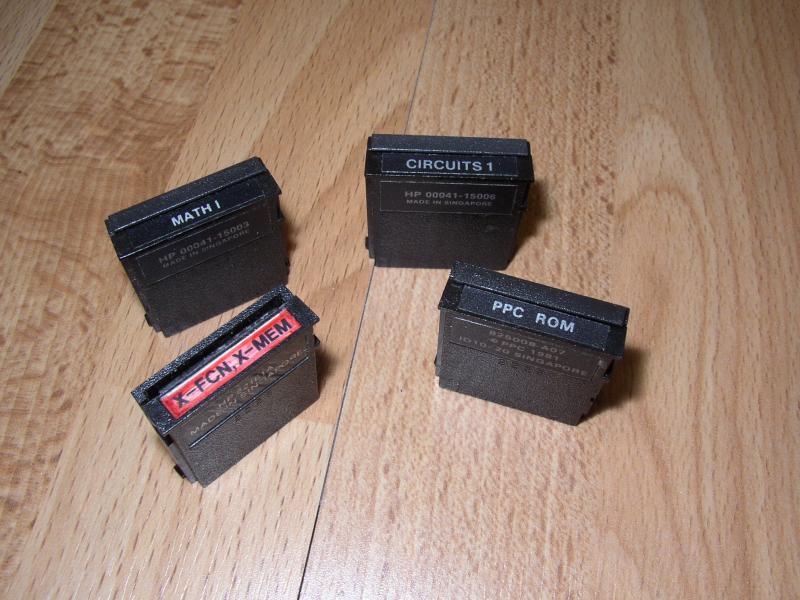

87 Kb
A few of my modules |
|
78 Kb

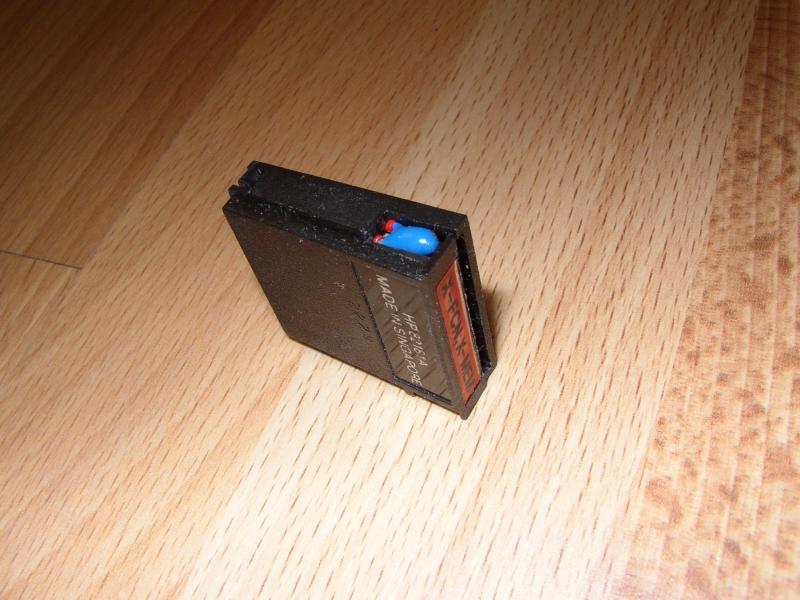

My XFUN/XMEM
module. These are actually two modules combined. The blue Tanatalum
Capacitor is used to keep information for a few hours while the
module is unplugged. |
78 Kb

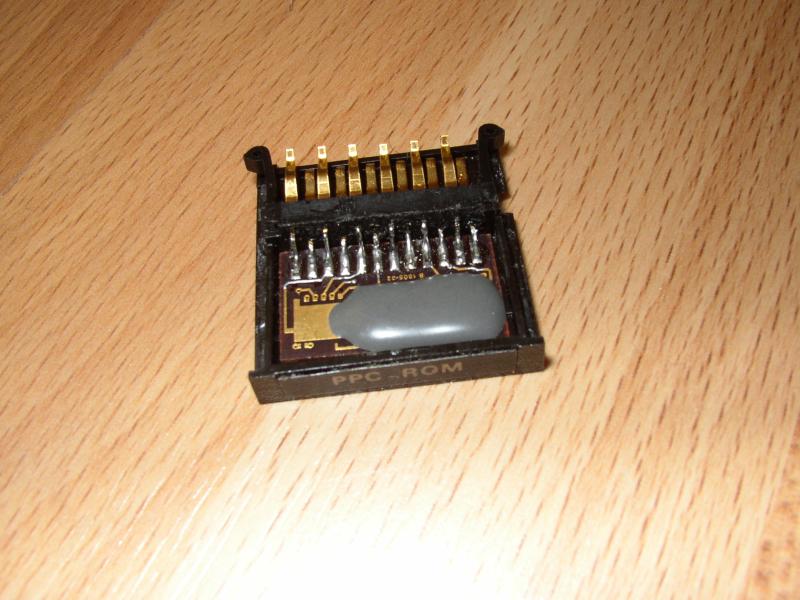

This is the inside
of the PPC ROM |

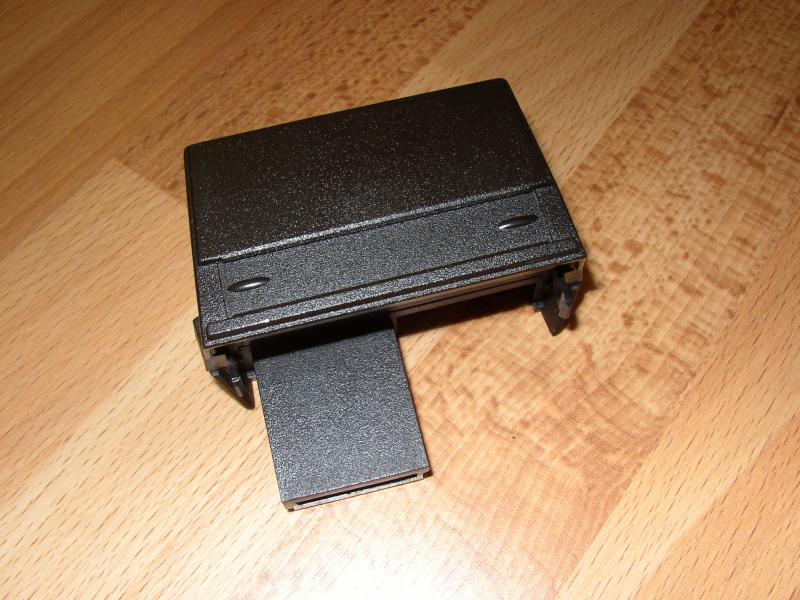

92 Kb
My good old cardreader |

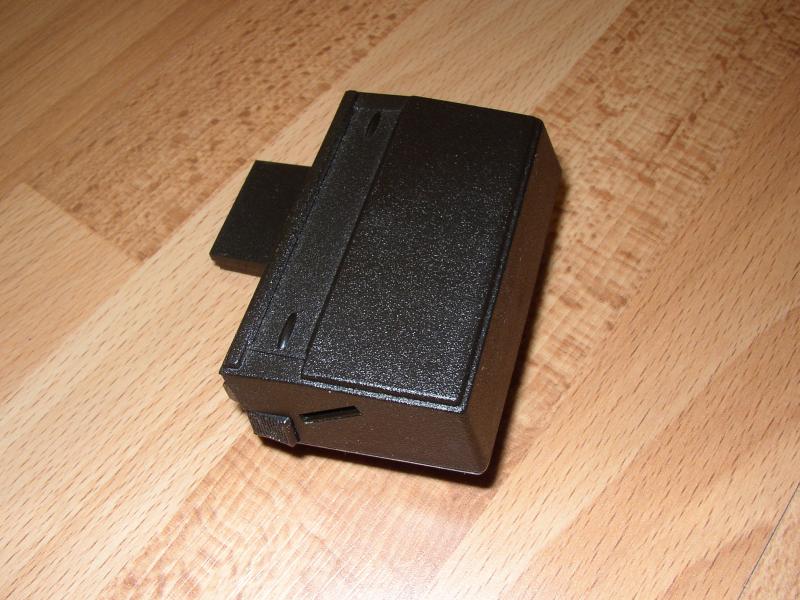

87 Kb
Side view of the cardreader |
|
90 Kb

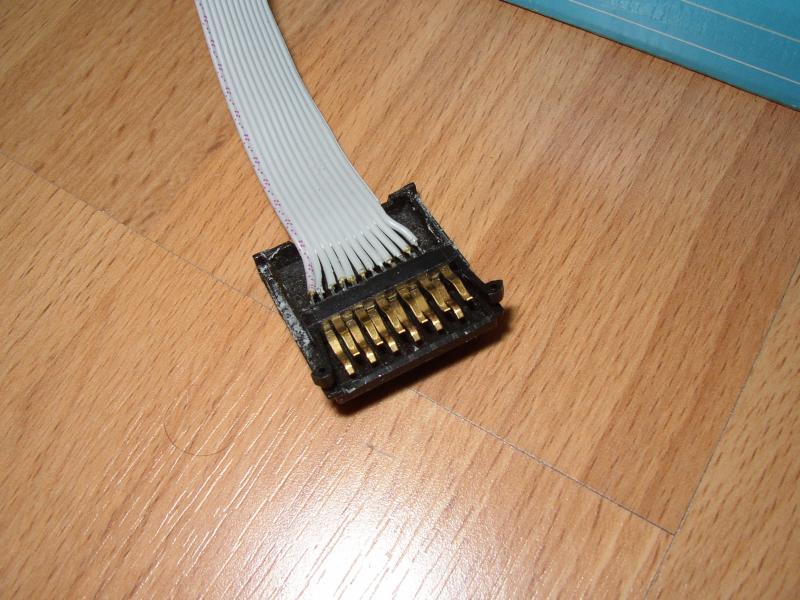

Inside of a module
with flatcable connected. This is actually uised to connect to the
MLDL2000 prototype |

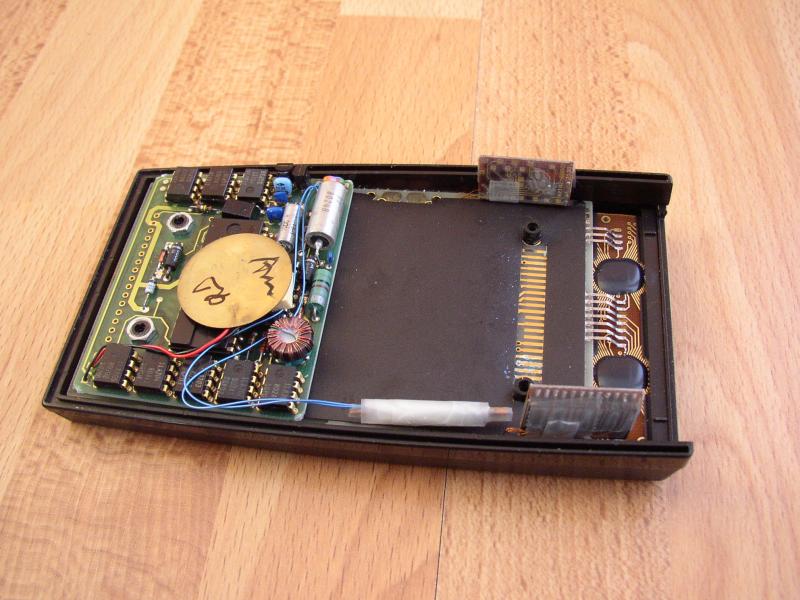

94 Kb

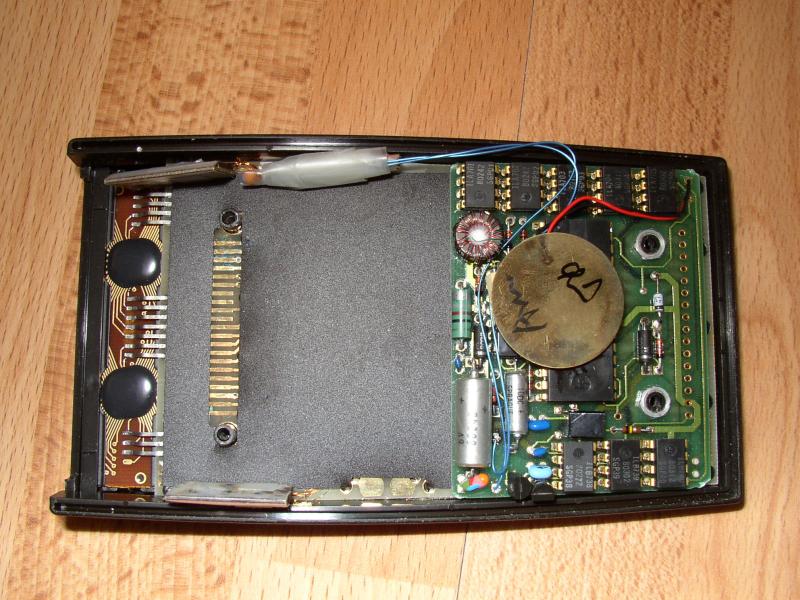

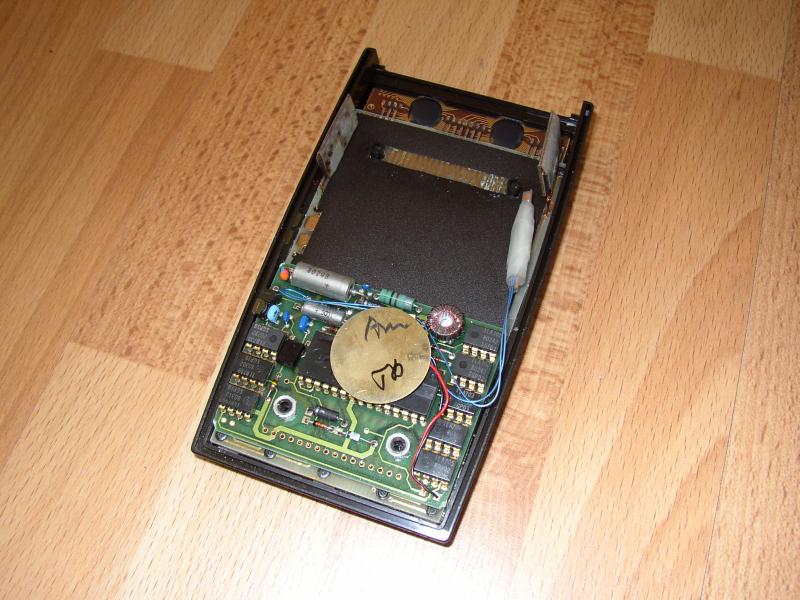

This is my HP41C.
Visible are two built-in modules (QUAD MEM and TIME) plus the
capacitor and reed relay for the 2* speed-up. |

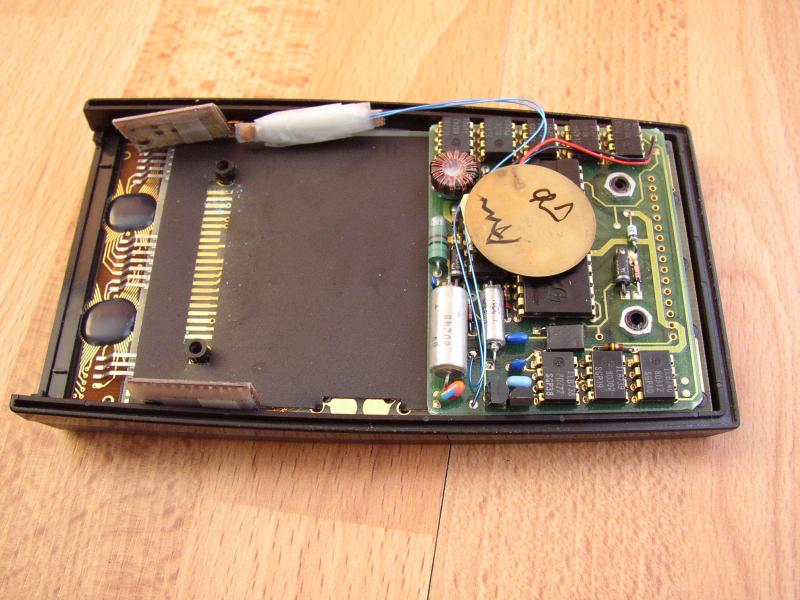

86 Kb
Side view of the HP41C |
90 Kb
Another Side view,
other side |
|
111 Kb
Top view of the HP41C |

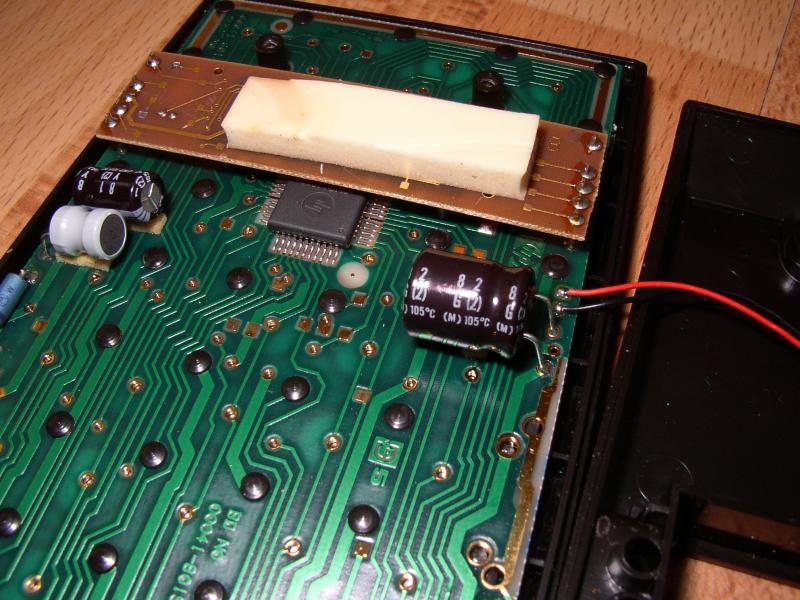

96 Kb

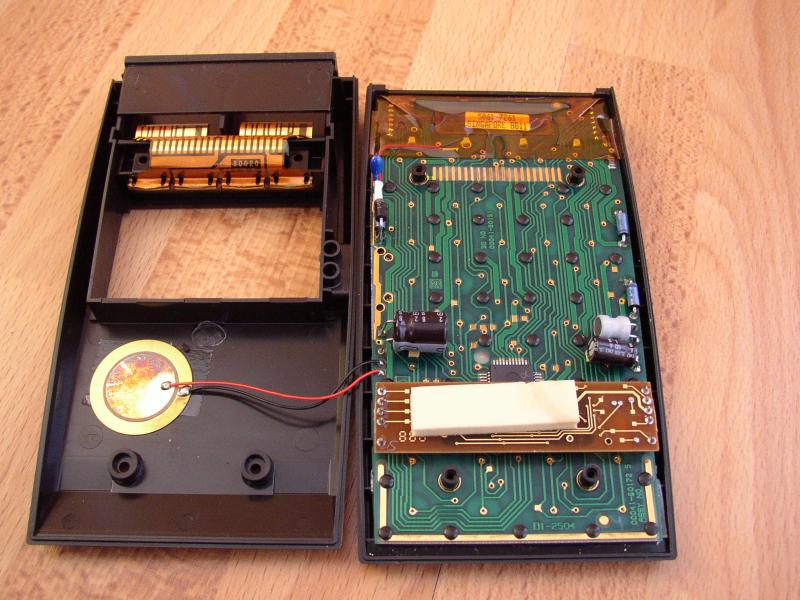

This is the inside
of my HP41CX |

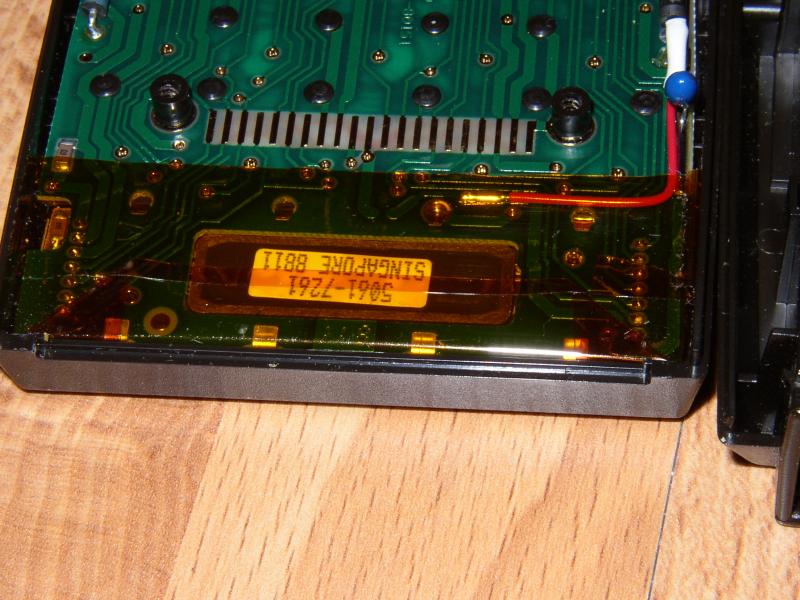

91 Kb
HP41CX 'Bridge
Board'. Supposed to contain the extra ROMS plus the TIME module. |
101 Kb
Bridge board of
the HP41CX. Visible below it is the CPU. |
|

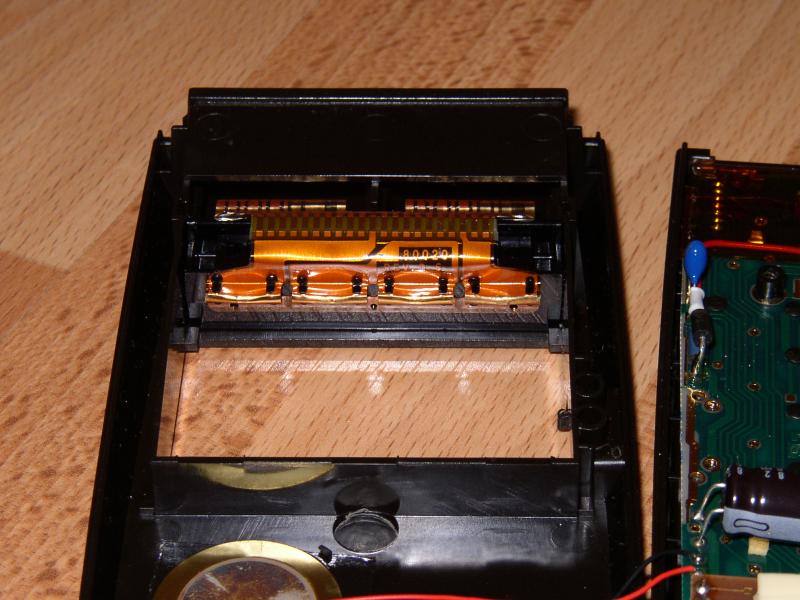

94 Kb
HP41CX display close-up |

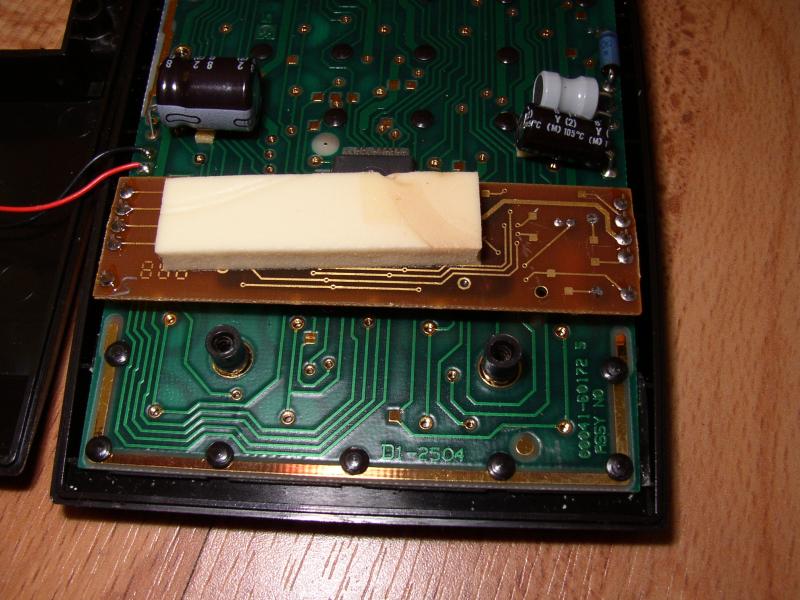

83 Kb
HP41CX close op of
the I/O assembly |
|
|
